Rear View Color Camera for TOYOTA PROACE 2 / VERSO

Rear View Color Camera for TOYOTA PROACE 2 / VERSO

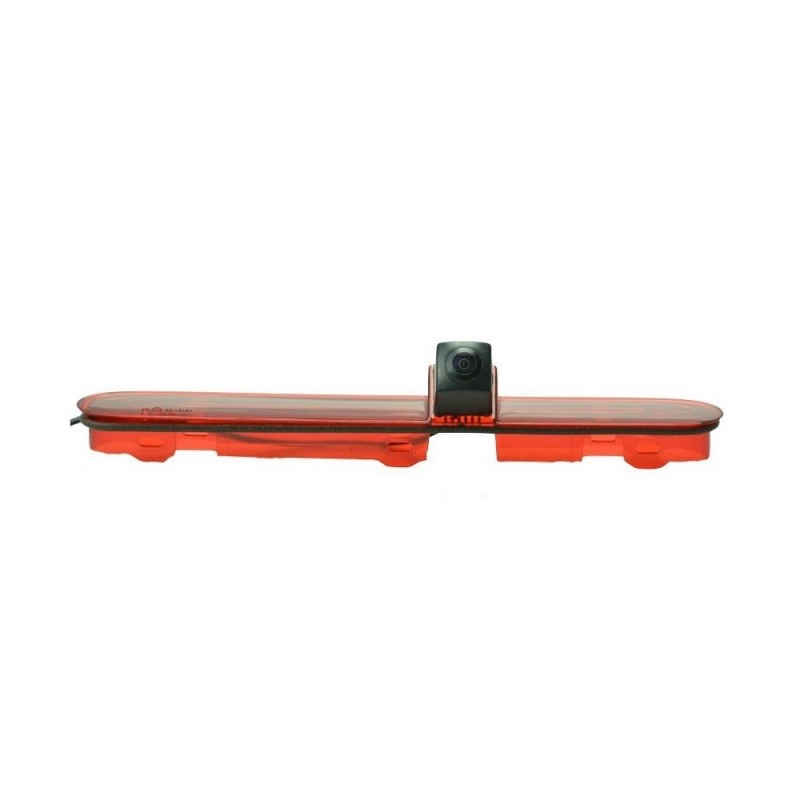

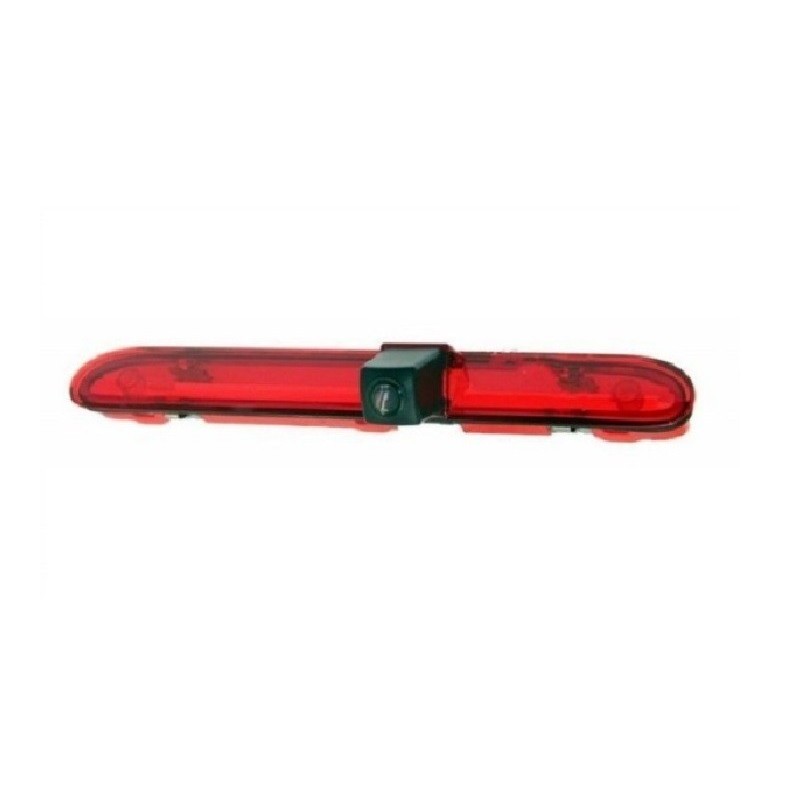

TOYOTA PROACE 2 / VERSO Brake Light Rear View Reversing Camera

This camera is a bespoke reversing camera designed specifically for use with the TOYOTA PROACE 2 / VERSO (2016 Onwards). Its unique design means that no holes need to be drilled when mounting; the camera will simply replace your existing rear high level brake light located at the top of the rear doors, integrating seamlessly with the lights original mounting clips/screws The camera is designed to replicate the size and shape of the existing high level brake light but with the addition of a precision angled camera.

Once correctly installed, the camera will automatically power on as soon as the vehicle is put into reverse delivering a PAL video signal via the included 10 metre RCA video cable signal to any monitor with an RCA reverse camera input

The camera is also compatible with any aftermarket car head unit with a suitable video input. If your aftermarket head unit has a dedicated camera input then the camera can be set up so that the rear-view image can be automatically displayed as soon as the car is put into reverse.

- Integration: Car-Specific

- Mounting position: Brake light (Retro-Fit)

- Picture sensor: Color sensor, 1/3" CMOS

- Lens angle: 120°

- Cam resolution: 500x 582 Pixel

- Color resolution: 700 TV lines

- Mirroring function: Yes

- Protection class: IP69K

- Backlight Compensation: Automatic

- White balance: Automatic

- Noise Ratio: >48db

- Operating voltage: 12V (ca. 3 Watt)

- Operating temperature: -40°C - 80°C

- Cable length: 10 m
