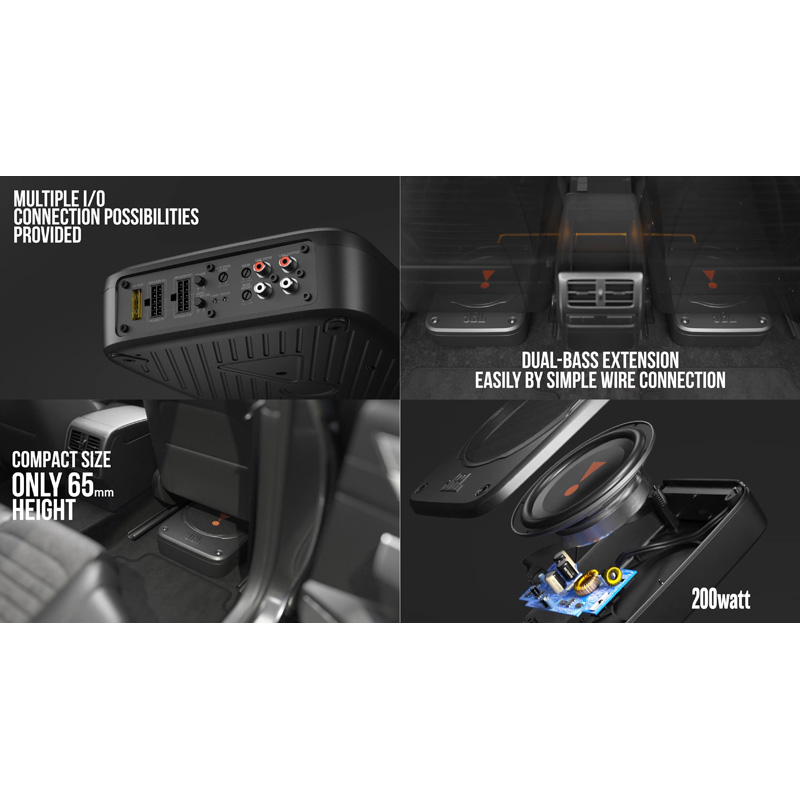

JBL Bass Pro Lite 7'' Underseat Subwoofer Boombox

JBL Bass Pro Lite 7'' Underseat Subwoofer Boombox

JBL BassPro LITE delivers deep bass and takes up ultra-compact space.

JBL’s smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, BassPro LITE delivers accurate, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.

Features
Big Bass,ultra-compact space
Upgrade easier, Connected in series
Intelligent Electronic Design for Reliable and Extraordinary Performance
Die-Casting Aluminum Enclosure Design
Bass boost Volume Control

Features and Benefits

Big Bass,ultra-compact space
JBL BassPro LITE delivers deep bass and takes up ultra-compact space. Its onboard 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Upgrade easier, Connected in series
JBL BassPro LITE can be connected in series for user upgrade to purchase 2 set devices. The secondary BassPro LITE is still adjusted by them-self without extra Power / Single complex wires

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassPro LITE employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design is not only Ultra-compact size, but the ALL IN ONE is combined elegant JBL industry design element and powerful acoustic performance.

Bass boost Volume Control
Bass boost Volume control is intergraded on I/O panel to let you adjust the sound freely

Technical Specifications
Driver Complement: super powerful 7''(178mm) Subwoofer
Amplifier Power: Class D, 100Wrms; 200W Max
Frequency Response: 30Hz – 150Hz
Fuse: 15A
Maximum Current Draw: 15 A
Quiescent Current Draw: Input Sensitivity: 0.18 V – 5.0 V Low-
Level Input; 0.75 V – 20V High-Level Input
Crossover Frequency: 50 Hz – 150 Hz
Crossover Slope: 12 dB/octave
Bass Boost: 0dB to + 12dB @ 50Hz
Dimensions (L x W x H): 10-1/4'' x 8'' x 2-9/16'' (259.6mm x 203.1mm x 65.5mm)
Weight: 8 lbs (3.5kg)

What’s in the box
1x Under seat subwoofer
4x Screws
2x Wiring harness for power and speaker level input (300mm)
1x 15A Fuse
